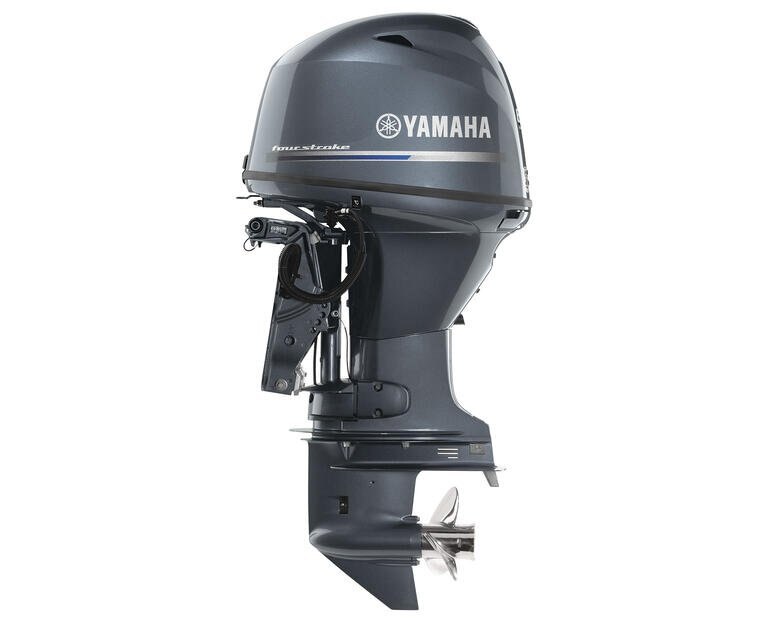

2025 Yamaha F60B

Call Email
  • 2025 Yamaha F60B
  • 2025 Yamaha F60B
Call for Price
Contact Us Get Approved Value a Trade   Get Directions  Print
Overview

For fishing, tubing and other fun, the F60 is the perfect engine for your weekend fun. Like all Yamaha four strokes, it's clean, quiet and fuel efficient, and it's easy to operate and maintain, too.



Specifications
Model
F60B
Category Name
Outboard Engines
Year
2025
Sale Type
New
Manufacturer
Yamaha
Color
Bluish Gray Metallic
engine
Cooling
Water/Thermostatic Control
Exhaust
Through Prop
Ignition
TCI micro-computer
Starting
Electric
RPM Range
5,000 - 6,000
Gear Ratio
13.24 (1.85)
Gear Shift
F-N-R
Engine Type
4-cylinder
Lubrication
Wet Sump
Displacement
996cc (60.8ci)
Bore & Stroke
65x75mm (2.56x2.95in)
Induction System
SOHC
Alternator Output
17 Amps
Compression Ratio
9.5:1
Degree Of Trim/Tilt
-4° through +20°/69°
dimensions
Dry Weight
112kg (247lbs)
Shaft Length
20"
highlights

2025 Yamaha F60BPRECISE TROLLING CONTROL

Adjust trolling speeds in 50-rpm increments simply by pushing a button on the optional Command Link tachometer or the VTS- switch on the optional multifunction tiller handle.

2025 Yamaha F60BRESPONSIVE POWER

The overhead camshaft design efficiently exchanges intake and exhaust gases for responsive power and fuel efficiency.

2025 Yamaha F60BSINGLE THROTTLE VALVE

Air entering the engine block is routed through a single throttle valve, to ensure the precise amount of air necessary for optimum power and fuel efficiency. It then enters each cylinder through individual long intake tracks, which are "pulse tuned" to provide air at the precise volume and timing for maximum density and power.
key features
  • Optimal fuel/air mix: Multi-port precision electronic fuel injection on the F90 delivers the optimal fuel/air mix to each cylinder.
  • Variable trolling system: The tiller handle models come standard with Yamaha's Variable Trolling Speed feature, allowing the operator to stay on the fish by selecting the preferred rpm (in 50 rpm increments) within a range of 620-900 rpm!
  • High and dry: A top-mounted flywheel keeps sensitive electrical components out of the water.



fuel and lubrication
Oil Capacity
2L (2.1 qt)
Recommended Oil
Yamalube 4-M FC-W 10W-30 or 20W-40
Recommended Fuel
Regular Unleaded (Minimum Pump Octane 87)
features and benefits

OPTIMAL FUEL/AIR MIX

Multi-port precision electronic fuel injection on the F50 delivers the optimal fuel/air mix to each cylinder.

VARIABLE TROLLING SYSTEM

The tiller handle models come standard with Yamaha's Variable Trolling Speed feature, allowing the operator to stay on the fish by selecting the preferred rpm (in 50 rpm increments) within a range of 620-900 rpm!

HIGH AND DRY

A top-mounted flywheel keeps sensitive electrical components out of the water.

OPTIMUM PERFORMANCE

An ECM (Engine Control Module) adjusts timing to maintain optimum engine performance, economy and reliability in all conditions.

MULTI-FUNCTION TILLER HANDLE

Available on F30 through F60, and optional on F75 through F115, the multi-function tiller handle gives you fingertip control of starting, shifting, steering and throttle.
