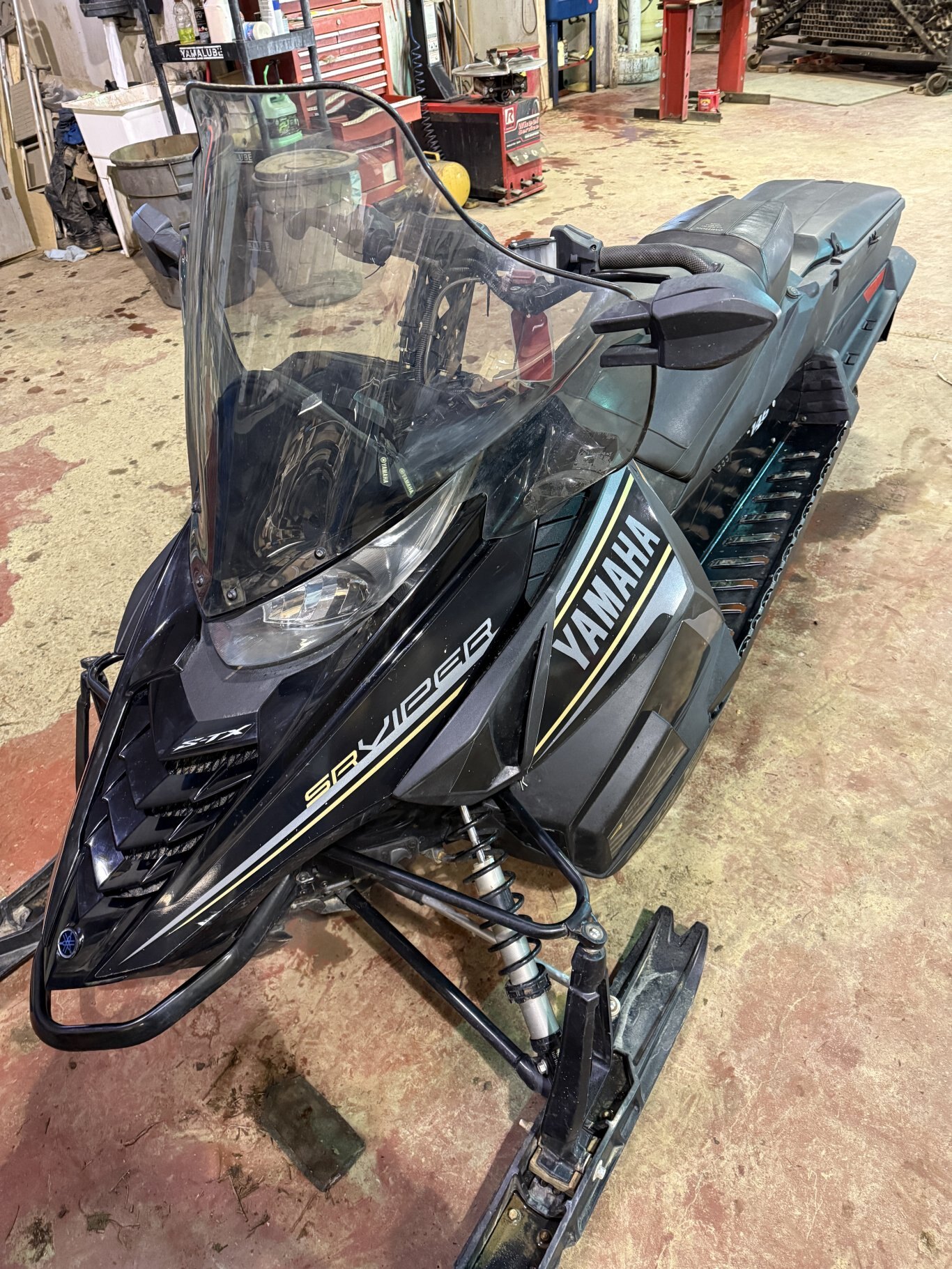

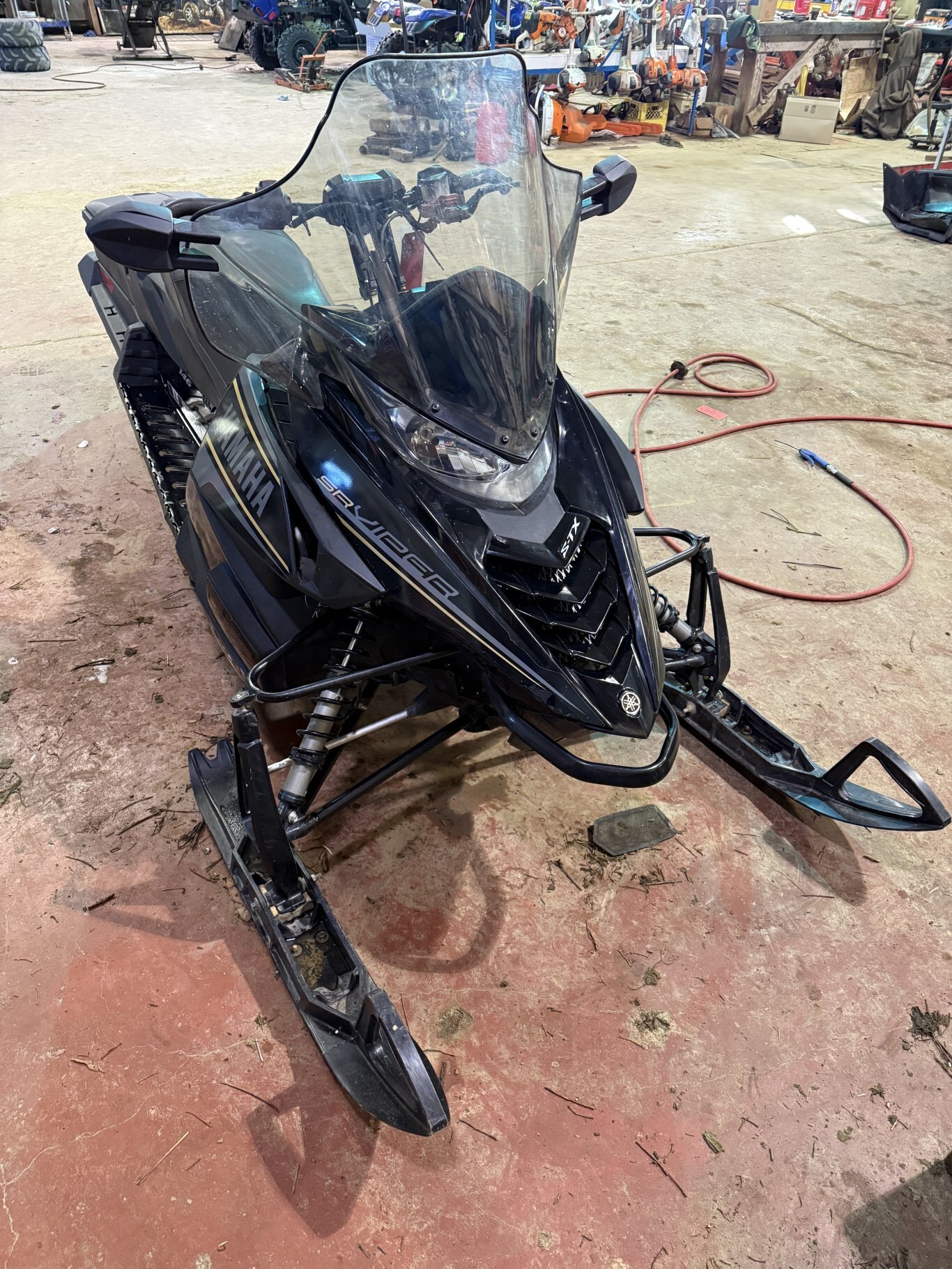

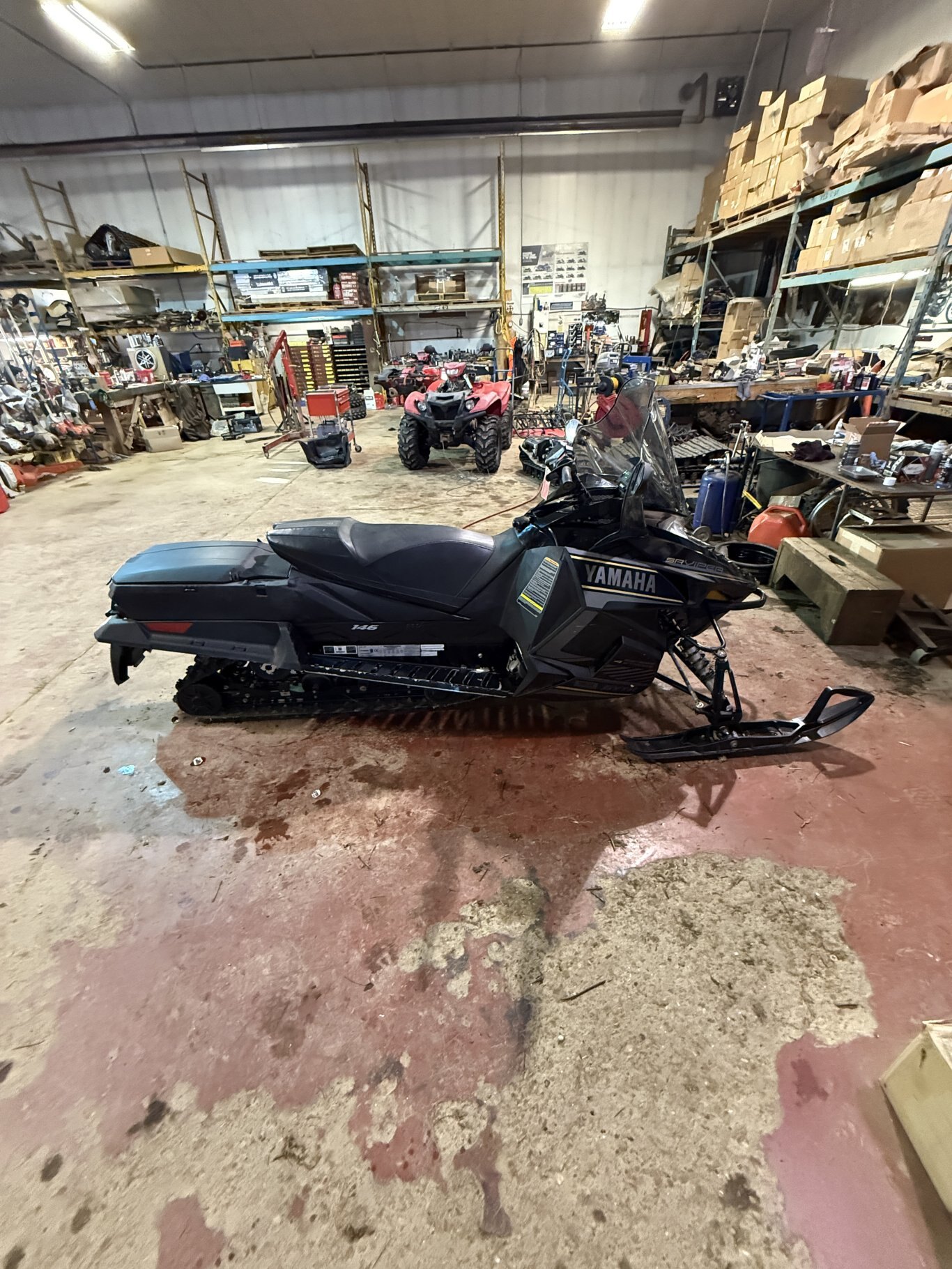

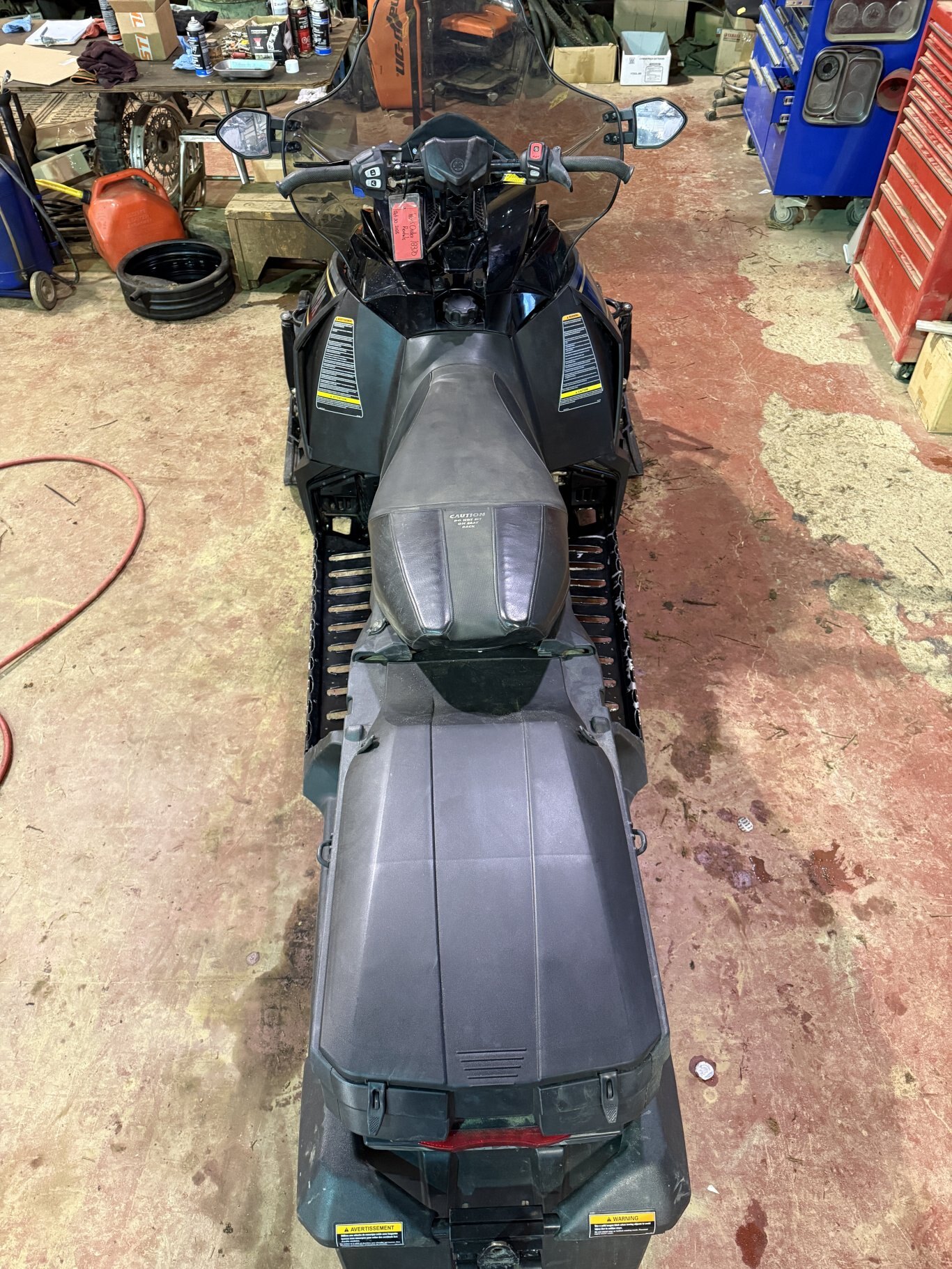

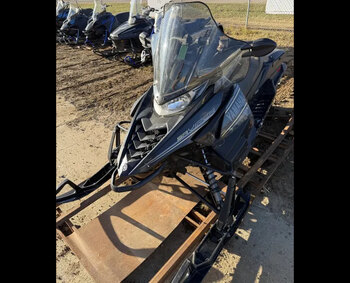

Yamaha SRViper S-TX 146 DX

Call Email
  • Yamaha SRViper S TX 146 DX
  • Yamaha SRViper S TX 146 DX
  • Yamaha SRViper S TX 146 DX
  • Yamaha SRViper S TX 146 DX
  • Yamaha SRViper S TX 146 DX
  • Yamaha SRViper S TX 146 DX
  • Yamaha SRViper S TX 146 DX
  • Video Button Maxresdefault
  • Video Button Maxresdefault
 In Stock
$8,000 CAD
KM: 4416
Contact Us Get Approved Value a Trade   Get Directions  Print
Overview
Conquer Snow

High milers rejoice. Comfort and convenience comes in the form of the SRViper S-TX 146 DX. The trail-slaying 146 gets a 1.25" lug and rear trunk with auxiliary fuel tank with the ability to carry over 15L more fuel. It also comes with heated trail seat, and high pressure gas suspension for a plush, compliant ride. Blow by your friends, and the gas stations, on the SRViper S-TX 146 DX.
  Yamaha Genesis High Performance Engine

2015 Eng High Performance

  •  3 cylinder
  •  Yamaha YVXC clutch
  •  41mm fuel injection
  •  10 gal (37L) fuel capacity
   Trunk Enclosure

2016 SR Viper STX 146 DX H 02

  • Durable exterior
  • Moisture resitant


  Tall Windscreen

2016 SR Viper STX 146 DX H 03

  • More comfort
  • Less rider fatigue


  Performance
  • High Performance Genesis 4-stroke engine
    The over-achieving Genesis® engine is the heart of our lightweight and aggressive SRViper model family. It pulls consistently hard from takeoff to top end. Your thumb cracks a trio of 41mm throttle bodies that deliver strong performance from idle to wide open.
  • Fuel injection
    The Genesis High Performance engine uses Yamaha's advanced fuel injection system to control fuel flow to the engine. Consumers will enjoy the engine's spot-on performance and throttle response as a result of the advanced electronic fuel injection system.
  • Engine braking reduction system
    The Genesis High Performance engine features the unique Engine Braking Reduction System. The system allows a small amount of air to pass through the fuel injection system when the throttle is released, giving riders a "coast" feeling.
  • Legendary Yamaha Clutching
    The SRViper S-TX 146 DX uses the legendary Yamaha YVXC clutching. Easily the most reliable and durable clutch system in the industry, the YVXC has evolved to efficiently handle the unique power characteristics of the Genesis 4-stroke engine.
  • Multi-purpose magnesium chaincase
    The SRViper S-TX 146 DX's chain case and cover serve as both a mounting point for chassis spars and the engine's oil reservoir. Lightweight magnesium construction minimizes weight.
  • High performance Hayes Brake system
    The SRViper S-TX 146 DX's high performance Hayes brake system delivers stopping power with a large-diameter, 8-inch rotor. Mounted low on the drive shaft, you feel immediate whoa-power with a quick stab of the brake. The hydraulic brake's race-inspired radial master cylinder design gives you excellent leverage when needed, with precise brake feel and control.

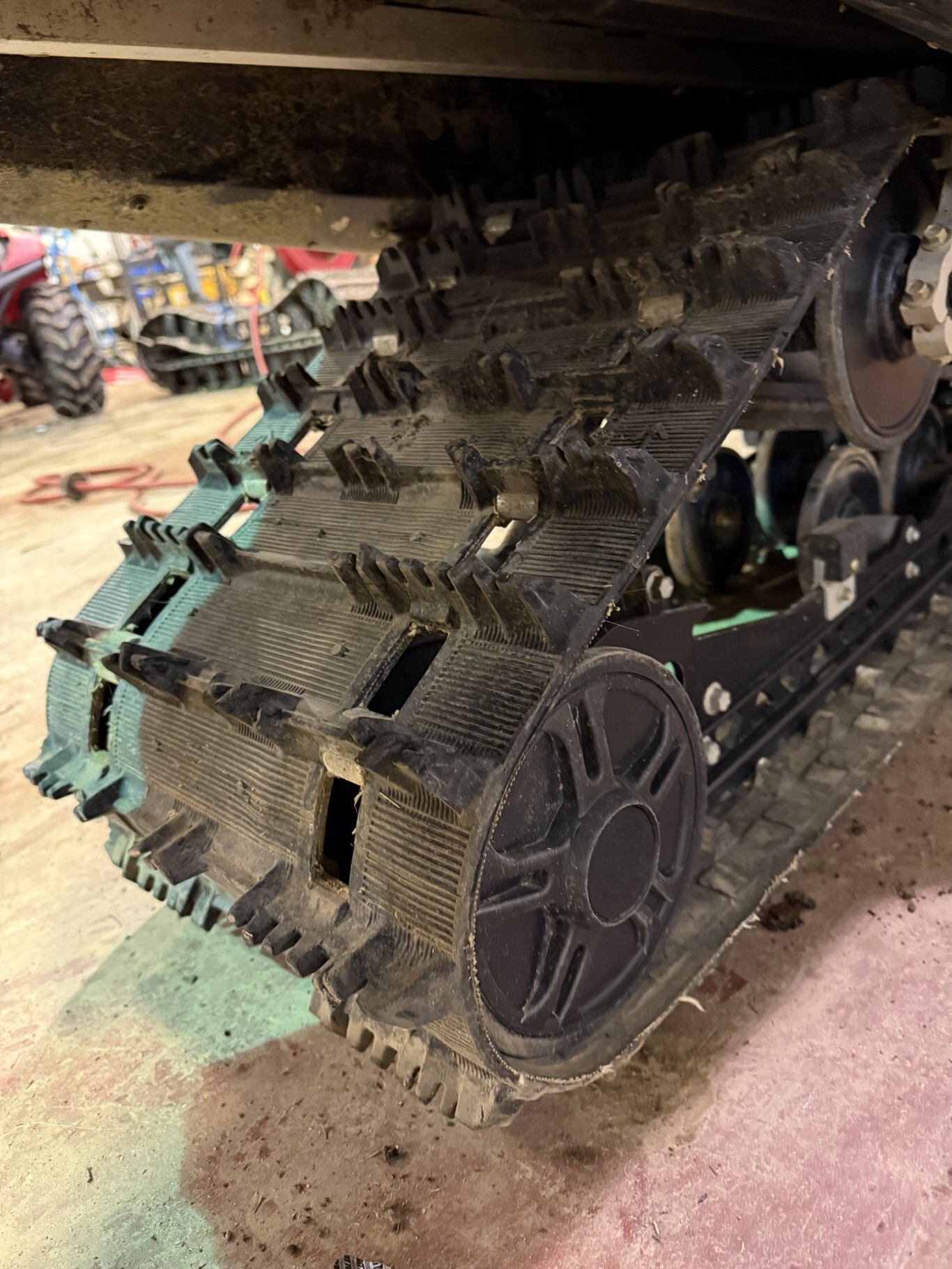

  • 15 x 146 x 1.25-inch Camoplast® Rip SawTM II track
  • The SR Viper S-TX 146 DX uses the extraordinary Camoplast® Ripsaw IITM track, measuring 15 by 146 inches, with 1.25-inch lugs. This evolutionary lightweight track design is the next stage of close collaboration between Yamaha and Camoplast. It features a durable single-ply design with next-generation lug pattern. The Ripsaw II has been designed to offer increased controlled lateral slide, allowing the SR Viper S-TX 146 DX to set up for the corner better while scrubbing off energy to keep both skis on the ground. The result is improved handling without the loss of straight line traction.
  Handling
  • Lightweight, rigid SRV chassis
    The SRV chassis combines a load-bearing triangulated structure with lightweight aluminum construction to create a neutrally balanced sled that's centered on the rider. The pyramidal upper frame creates chassis strength without excessive weight.
  • SRV Front suspension
    The SRV front suspension geometry is aimed at managing spindle camber, resulting in minimized bumpsteer and maximized cornering bite and rider confidence in varying trail conditions. The a-arms are mounted at a 30-degree angle from the sled's centerline to efficiently dissipate impact force throughout the entire chassis. Likewise, the front shocks mount directly to the leading spar so that trail forces are routed to the strongest part of the chassis. Wide a-arm spacing minimizes flex and stress in the front suspension system, which means consistent and confident corner handling.
  • Centralized mass design
    The SRV chassis layout was engineered with the goal of centralizing mass. Approximately 60 percent of the sled's weight is tightly centered within the main triangulation. The result is a quick-handling sled that's fun in a wide variety of conditions.
  • Side exit exhaust
    The exhaust exits out the belly on the SR Vipers. The unique chassis layout allows the exhaust to exit the back of the engine, have the 3-into-1 manifold cooled by snow kicked up through a hole in the tunnel and then bring the pipe back to the muffler in a traditional configuration. The end result is mass centralization, excellent handling and consistent performance.
  • Adjustable ski stance
    The ski rubbers on the SRViper S-TX 146 DX are asymmetrical, with a portion of the part serving as a spacer for the ski. This allows riders to adjust the ski stance on the Viper from 42 to 43 inches, center to center, by simply switching the ski rubbers from left to right, and right to left.
  • Over-the-engine steering
    The straight steering post on the SRViper S-TX 146 DX is configured over the engine. It connects to a single bell crank for simplicity and light weight. The design also minimizes freeplay in the steering system and delivers a tight turning radius.
  • Deep-Keel Tuner ski
    The deep-Keel Tuner ski greatly contributes to the SRViper's trail character. The deep keel design is specifically developed to work with the SRViper models to keep the ski tracking straight and true down the trail, virtually eliminating nosiness and darting. Each keel has its own wear-bar, and Yamaha has four different bar configurations to choose from, which means you can tune your sled's cornering bite and steering effort to suit your personal preference.
  • Tall, hooked handlebars
    To match the SRViper S-TX 146 DX's tall and forward riding position, a single-piece, dual-hooked handlebar is standard fare. The hooks have the same grip material as the main bar section, for consistent control, regardless of hand position on the grip.
  COMFORT
  • HPG Coil-Over Front Shocks
    High Pressure Gas (HPG) shocks with strong 40mm bodies are calibrated to deliver consistent performance and comfort with excellent fade resistance. Plus the shocks are rebuildable, ensuring you season after season of consistent performance with proper maintenance.
  • HPG Rear Shocks
    Premium High Pressure Gas shocks are found at both the front and rear arms of the rear suspension - tuned for premium control and comfort with incredible fade resistance. The shocks are also serviceable, allowing your authorized Yamaha dealer to recharge and refresh them for consistent performance season after season.
  • Dual Shock SR 146 Rear Suspension
    Based off the proven design of the SR 141 suspension, the Dual Shock SR 146 offers increased flotation and comfort thanks to its longer length and comfort tuned torsion springs and high pressure gas shocks at both front and rear arms. The lightweight suspension serves up excellent flotation off-trail but is primarily designed for on-trail duties with superior traction for improved acceleration and braking performance along with impressive bump absorption across a wide range of trail conditions, from freshly groomed to trail chatter to larger bumps and unpredictable terrain.

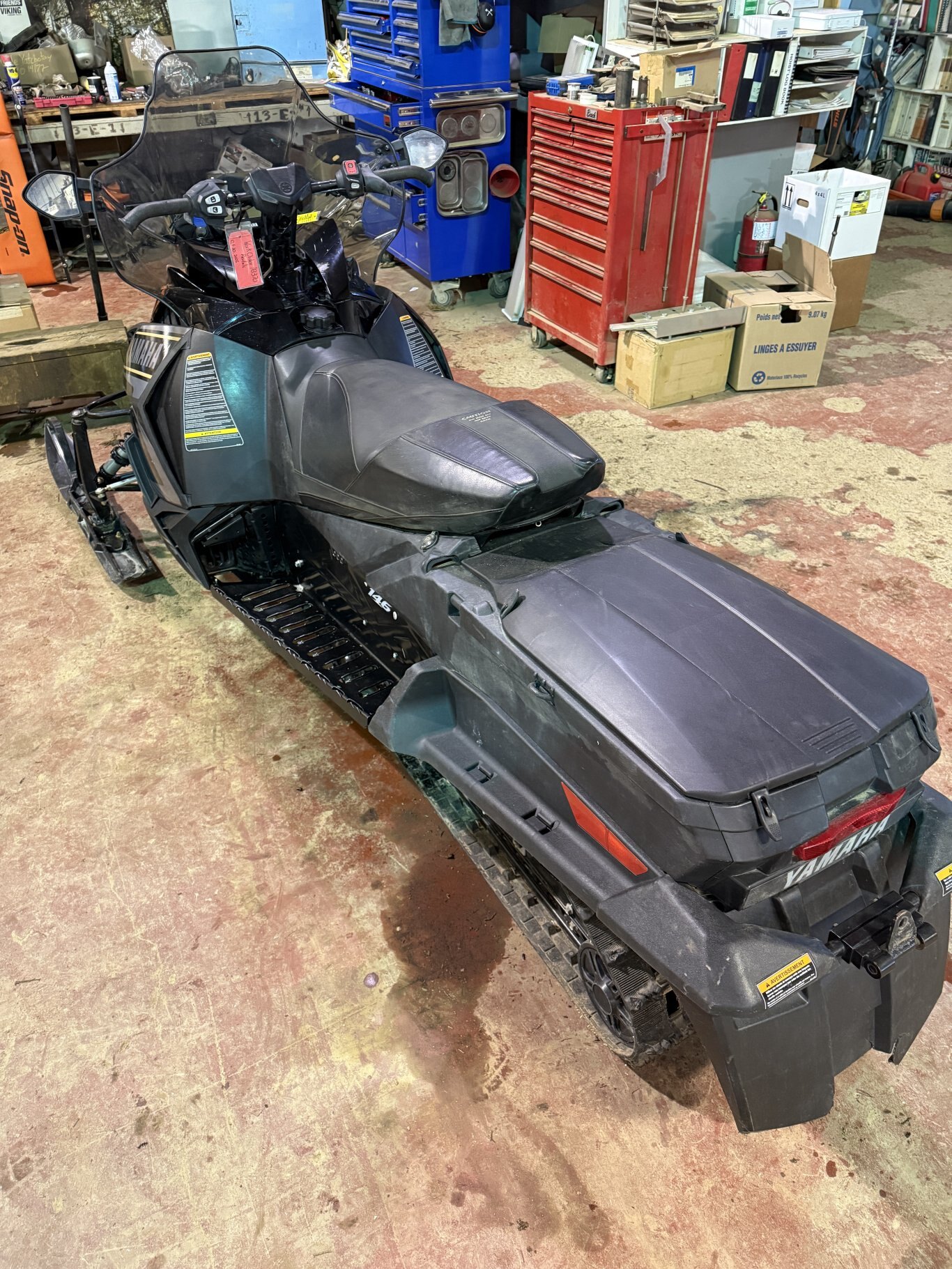

  • Auxiliary Rear Fuel Tank/Storage
    A rear-mounted fuel tank with a capacity of 4.7-gallons dramatically extends range for those who crave long distance riding without stopping. The system is designed to use fuel from the auxiliary tank first, thereby keeping the vehicle balanced. In addition, a rear mounted storage area adjacent to the tank offers extensive space for additional gear and features a quick latch cover to keep gear out of the elements while blending seamlessly with the overall lines of the snowmobile.
  • Tapered tunnel design
    The SRViper S-TX 146 DX's two-piece, tapered tunnel gives you strength for the long haul and a tapered "fit" for enhanced leg comfort and overall ride positioning.
  • Large fuel tank
    The SRViper S-TX 146 DX's generous 10.6-gallon fuel tank combines with the Genesis engine's acknowledged fuel efficiency to keep you on the trail longer. The Viper S-TX's efficient design philosophy means that even the fuel tank serves multiple functions. Not only does it carry gas for a long day on the trail, but it also cradles the battery and is the platform for the quick-release trail seat.
  • Tall, sculpted seat
    The seat foam on the SRViper S-TX 146 DX is anatomically designed to comfortably put the rider in an aggressive posture with easy transitions from seated to standing to leaning into a corner.
  • Heated seat
    The SRViper S-TX 146 DX comes with a heated seat to help keep you comfortable even in the coldest temperatures. The high-low-off control switch is located on the cab of the sled.
  • Midheight windshield
    The SRViper S-TX DX's windshield was designed to be as functional as it is stylish. It features a tall height with precisely engineered curvatures providing maximum protection from wind and swirl-in, with minimum aerodynamic drag.

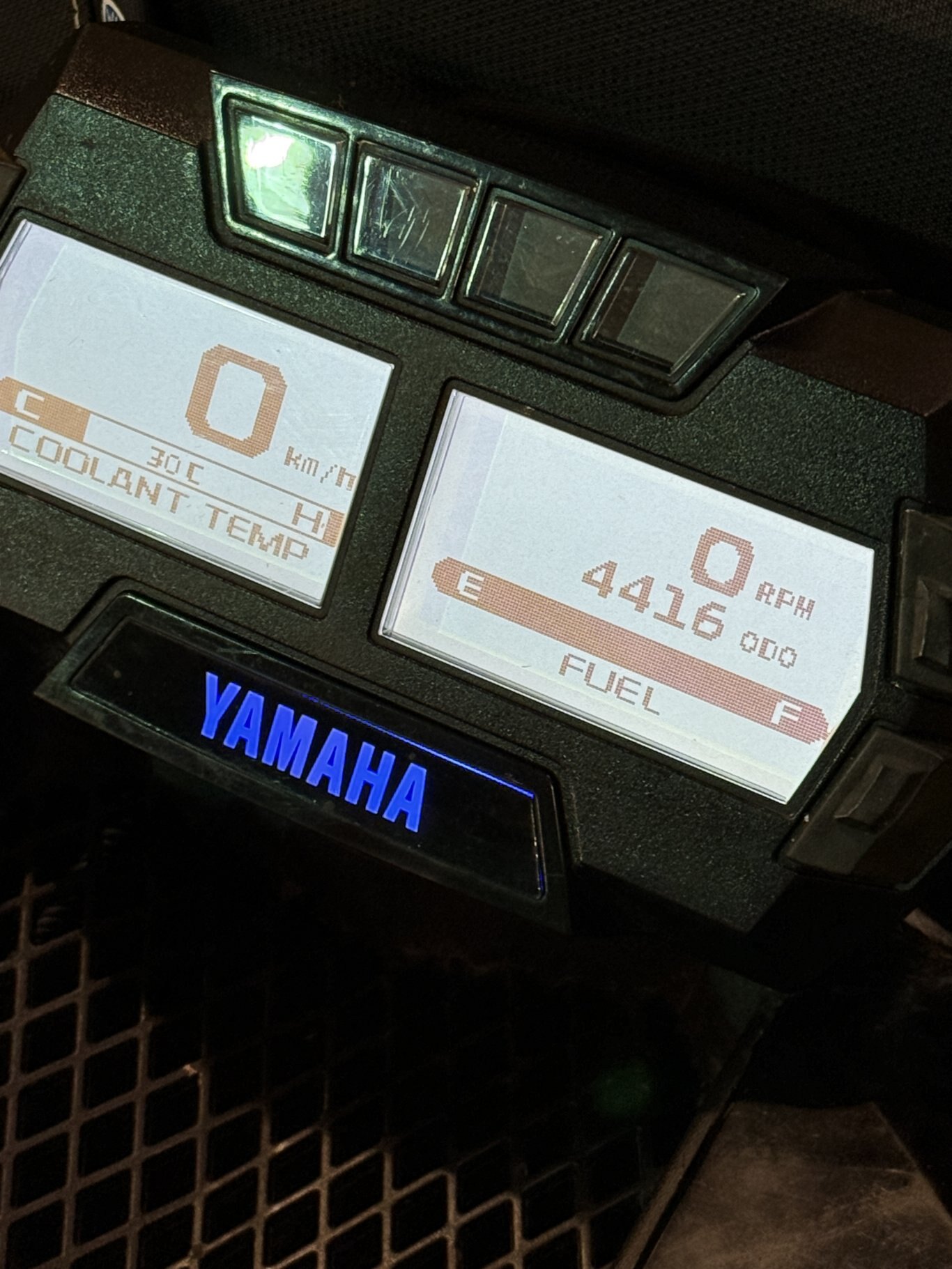

  • Digital gauge
    Full-featured and easy to read, the digital gauge displays critical information in a glance including speed, fuel level, trip mileage, tach and more. We even included a clock so you can watch the time fly.
  • Push button reverse
    Convenient handlebar positioning makes getting in reverse easy with just the push of your thumb. A servo motor shifts the drivetrain into reverse simply and consistently.
  • Standard electric start
    Yamaha's electric starter system allows consumers to fire up their SRViper S-TX 146 DX with the turn of a key. There is no pulling on a nylon cord to get this high-tech engine growling! Electric start is a standard feature on all of Yamaha's 4-stroke machines.









Specifications
Model
SRViper S-TX 146 DX
Category Name
Used Snowmobile
Year
2016
Sale Type
Used
Manufacturer
Yamaha
Vin
4UF8LN109GT000196
Color
Black / Gold
Width
48 (1219mm)
Clutch
YVXC
Length
125 (3175mm)
Reverse
Push Button
Rear Shock
Aluminum HPG / Aluminum HPG
Brake System
Radial Master Cylinder Hydraulic
Front Shocks
Aluminum rebuildable HPG
Bore X Stroke
82.0 x 66.2mm
Rear Suspension
Dual Shock SR 146
Front Suspension
SRV
Fuel Tank Capacity
37 (4.6 gal. reserve)
